Understanding the intermittent bonded ribbon production line
Equipment for producing rollable formats in optical-fiber manufacturing is provided by Shanghai Weiye Optic Fiber Communication Equipment Co., Ltd. This setup is designed for 12- and 16-fiber ribbons, allowing buyers to assess its capacity against their planned product range. Factory space and installation needs may also be influenced by the system’s split-type construction.
Intermittent Bonded Ribbon Compact Fiber Unit Fiber Coloring Machine
For this specific production line, the specified construction speed is 600 m/min. Fiber pay-off, gathering and guiding, intermittent resin dispensing, UV-LED curing, visual monitoring, capstan pulling, and take-up are integrated in the process. When assessing suitability, the complete process matters rather than speed alone.
Factory utilities, reel requirements, available floor space, and installation conditions should be reviewed before purchase. Ask the supplier for its documentation package and check the system’s suitability for your cable design and operating requirements. Early planning for these details can minimize setup delays and make startup smoother.
Key Takeaways
- Intended to produce rollable 12- and 16-fiber formats.
- Listed speed: 600 m/min for this equipment.
- Uses a split-type construction.
- Includes curing, monitoring, pulling, and take-up stages.
- Check utilities, reels, installation needs, and supplier documents before buying.

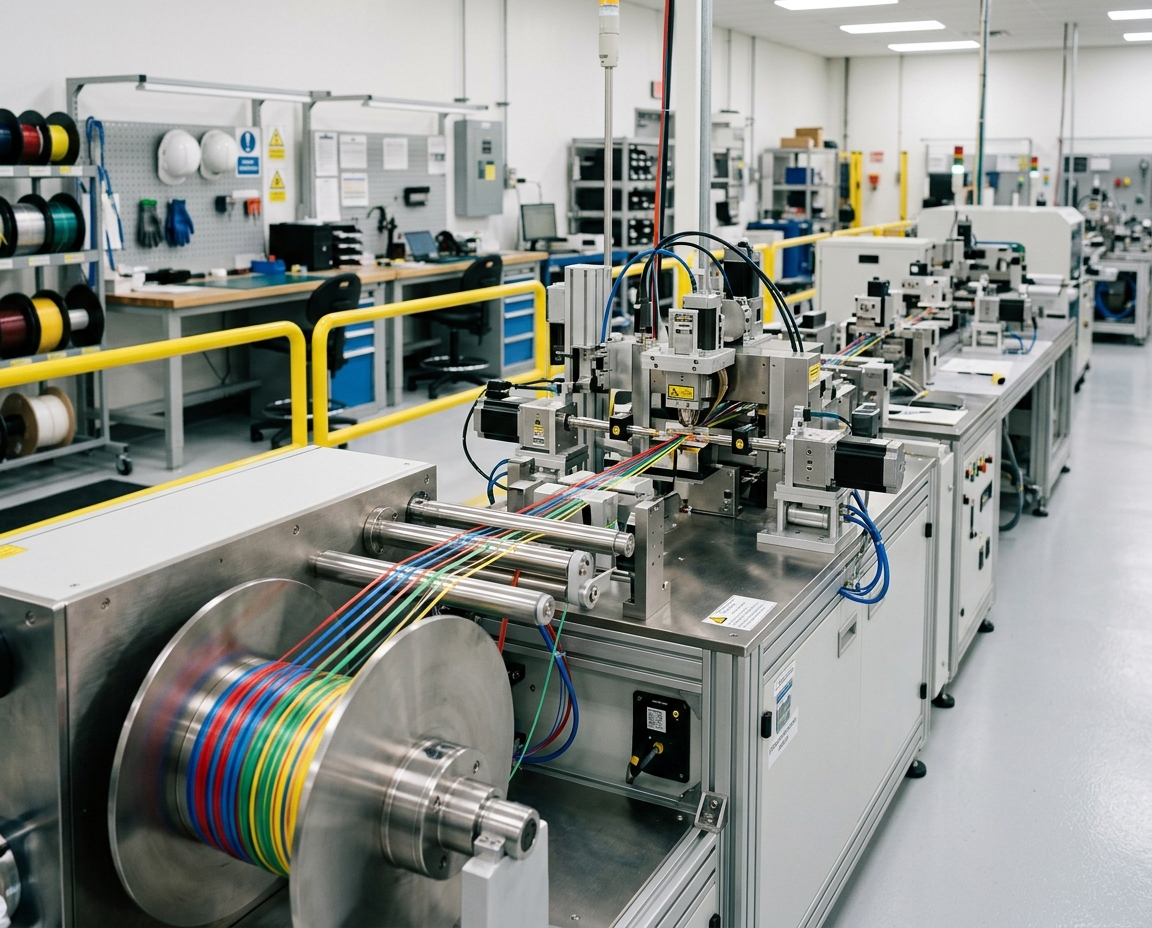

Intermittent Bonded Ribbon Production Line
Examine The Intermittent Bonded Ribbon Production Line
To create rollable IBR formats, three mold groups arrange fibers for the application of small adhesive dots. Operators can adjust the mold position from 0 to 15 mm to support consistent spacing and shape.
Produce Rollable Fiber Ribbons With Precision Bonding
A 16-spool pay-off feeds the machine, while guide rollers with U-shaped grooves keep individual strands organized. Steady contact during processing is supported by the rollers’ hard-anodized surfaces. For 12F and 16F layouts, the adjustable valve setup uses 5+5+1 valves for 12 fibers or 5+5+5 for 16. Ask the supplier to verify tension control settings that suit your particular cable design.
Run 12- And 16-Fiber Configurations At Up To 600 m/min
Construction speed is listed at up to 600 m/min. Pay-off reel options hold 25.2 km or 50.4 km of fiber according to the listed reel dimensions: Φ236 mm × Φ25.4 mm × 108 mm and Φ267 mm × Φ25.4 mm × 180 mm. The system also offers T-type or fiber-optic take-up reels. Assess whether reel capacity matches your operating needs and anticipated changeover time.
Examine The Production Line’s Main Equipment And Controls
Consistent output depends on coordinating tension, resin placement, and UV exposure. The system helps operators match settings to their cable design and fiber ribbon requirements.
Manage Fiber Tension, Resin Dispensing, And UV-LED Curing Together
Every pay-off unit uses electro-pneumatic adjustment. Through the interface, operators set adhesive-dot spacing and counts while dispensers operate individually or in linked groups.
Three pre-curing ovens serve the mold groups ahead of UV-LED post-curing. Ask the supplier to check resin compatibility and the relevant operating conditions.
The Siemens PLC and touchscreen show lamp current and oven temperature, generate alarms, and support preset lengths. Check the required cabinet and power supply arrangements before purchasing.
| Stage | Technical Specification | Buyer check |
| Fiber tension | Pay-off: 0.4 to 2 N, ±0.02 N; capstan: 50 to 500 g, ±5 g accuracy | Align settings with cable requirements |
| Resin dispensing | Independent or linked units; set adhesive-dot spacing and count | Review interface settings |
| Curing With UV-LED | Three 800 W pre-curing ovens; one 6 kW post-curing oven; 395 nm ± 3 nm; at least 85% cure under stable, high-speed conditions | Confirm resin compatibility |
| Process monitoring | Siemens S7-1200 or S7-1500 PLC; 10.4-inch touchscreen; real-time lamp current and oven temperature, alarms, preset lengths | Verify cabinet and power supply requirements |
Prepare Line Configuration, Installation, And Operating Conditions
Before the machine is delivered, set aside a dedicated operating area. An enclosed, clean, dry, draft-free space is needed for the optical fibre system. Keep the temperature from 15°C to 25°C, with humidity at or below 85%. Maintaining these conditions supports equipment protection and operating precision.
Review site utilities, electrical capacity, cabinet space, and cable design with your facilities team. Nitrogen at 7 bar with 99.99% purity and compressed air at 6 bar are specified for the system. A three-phase, five-wire electrical supply rated 380 V ±10% is required.
- Reserve room for the cabinet, components, resin, and access to service parts. Verify temperature settings and tension control before startup.
- Account for the specified reel size of Φ410 mm × Φ50.8 mm × 391 mm. Reels of up to 30 kg can be handled by the take-up unit.
- Include the main power feed-in cable in your site plan. Connection cables and cable trays are not supplied with the equipment.
The supply scope, reel types, and installation needs should be confirmed before placing an order. Reviewing these items may reduce setup time and avoid subsequent delays. Request supplier confirmation of suitable settings for your fiber and cable design, including lamp accuracy and operating conditions. Clear planning enables a smoother startup for the production system.
Request Pricing For A Ribbon Production Solution Tailored To Your Needs
At its stated speed of 600 m/min, this line can be considered by manufacturers producing rollable 12- or 16-fiber formats. When requesting a quote, share your fiber layout, output goals, cable requirements, reel preference, and factory conditions.
Confirm that the proposed system includes the 16-spool pay-off, UV-LED curing arrangement, take-up capacity, and relevant options. Before ordering, review the included components, dispensing-head options, unit functions, and cable design.
Listed documents include operating and maintenance manuals, a general layout drawing, electrical schematics, and a wear-parts list. Reviewing these documents can clarify setup time and future service requirements.
For pricing and configuration details matched to your production plan and site utilities, contact Shanghai Weiye Optic Fiber Communication Equipment Co., Ltd. Before buying, confirm the scope of supply and replacement parts.
