A small one-degree temperature shift can change a Brix reading enough to affect batch costs for a craft brewery. This shows why homebrewers, winemakers, coffee roasters, and lab teams need to understand refractometers properly.
Refractometer How It Works
This focused guide covers the basics of refractometers, how they work, and how to use them in real settings. It provides clear instructions for handheld and digital units, along with buying guidance for different applications. It also discusses buying refractometers and sourcing them from established vendors such as Installation Parts Supply (InstallationPartsSupply.com), a factory distributor and industrial supplier serving the beverage industry and OEMS for more than two decades.
It gives quick guidance on taking Brix and Specific Gravity readings, checking calibration, and understanding temperature compensation and correct sample handling. Whether you require a portable model for on-site checks or a digital bench unit for laboratory use, this section aims to equip you with the knowledge to achieve precise and consistent measurements swiftly.
Important Takeaways
- Minor temperature changes can affect Brix readings, so temperature control matters for accuracy.
- Refractometer use applies to brewing, winemaking, honey testing, and salinity checks.
- Handheld and digital models suit different workflows, so choose the best refractometer for your use.
- Consider a best digital refractometer if you need fast, logged results and integration.
- Buying refractometer products from reputable suppliers like Installation Parts Supply ensures access to commercial-grade parts and support.
Automated Refractometers
What A Refractometer Is And How It Works
A refractometer measures the bending of light as it transitions from air into a sample. This bending reveals the index of refraction, a critical number that reflects the sample’s composition and concentration. Understanding the mechanics behind refractometers is essential for selecting the appropriate tool and avoiding common pitfalls.
Definition And Main Principle
The device works through Snell’s Law and the critical angle. When light passes into the sample, refraction creates a boundary between bright and dark areas. That boundary matches a specific refractive index value. Factors such as temperature and wavelength can affect readings, so many instruments require compensation or temperature control.
Common Units And Scales
Refractometers either display refractive index or convert readings into units used for specific tasks. For example, Brix (°Bx) measures sucrose concentration in samples such as fruit, juice, and honey. Brewers and winemakers often use Plato (°P), Specific Gravity (SG), Oechsle (°Oe), and Baumé (B°). Salinity is commonly shown as PPT, ‰, or percent.
The available outputs may include RI, % sugar, °Bx, °P, SG, and salinity. Many users check readings against conversion tables or calculators. It is advisable to select a scale that aligns with the sample and expected range for optimal results.
Types Of Refractometers And Their Applications

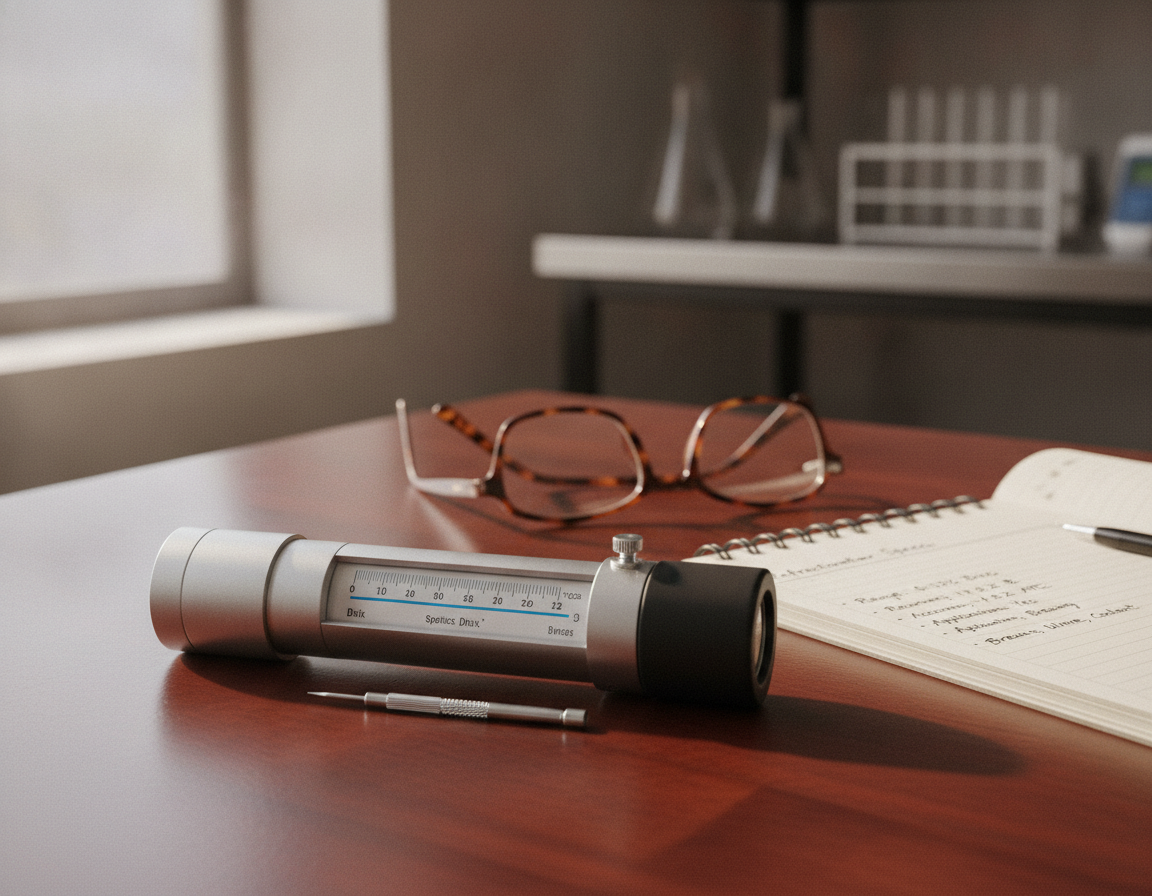

Handheld optical pocket models are designed for portability, requiring only a few drops of sample. They rely on an internal prism and a reticle that users view through a magnifier. They are useful for both professionals and hobbyists working in vineyards, apiaries, and homebrew spaces.
Digital refractometers use LED light and sensors to produce direct digital readings. They often include automatic temperature correction, simplifying data logging. Benchtop Abbe refractometers, on the other hand, excel in laboratory settings where high accuracy and broad wavelength control are critical.
Automatic and inline refractometers serve food processing and industrial applications that need high-throughput or continuous monitoring. Portable optical units can also be made for specific uses such as coolants and emulsions. Dual-scale instruments that show Brix and SG or Plato are convenient for brewing.
| Instrument Type | Typical Use | Key Advantage | Usual Range |
|---|---|---|---|
| Pocket optical | Field tests: vineyards, beekeeping, homebrew | Small sample size, portable | 0-32 °Bx |
| Portable digital | Quick lab and field checks | Easy readout, temp correction | Up to 85 °Bx, model-dependent |
| Benchtop / Abbe | Laboratories and QC | High accuracy, controlled wavelength | Wide refractive index and concentration ranges |
| Automatic Or Inline | Food processing and production lines | Continuous operation, high throughput | Application-specific ranges |
| Portable optical for fluids | Glycol, coolants, and emulsions | Application-specific concentration testing | Varies by use case |
Choosing The Right Refractometer For Your Needs
When selecting a refractometer, the primary consideration should be the specific task at hand. A handheld optical model works well for fruit assessments, beekeeping, and fast homebrew checks. On the other hand, a digital handheld is more suitable for coffee roasting and craft brewing due to its rapid readout capabilities. For labs, production lines, and glycol monitoring, benchtop or inline models are often preferred for precision and repeatability.
Match each refractometer type to the job
For homebrewers measuring wort and estimating ABV, models showing °Bx and SG or Plato are a practical choice. Pairing a refractometer with a hydrometer can help with post-fermentation calculations. Professional breweries may prefer benchtop digital or inline refractometers for ongoing monitoring and system integration.
Honey and syrups necessitate a refractometer with a high Brix rating, typically between 60 and 90 °Bx. Coffee users tend to choose high-resolution digital handheld models for roast and extraction monitoring. For plant and fruit field checks, lightweight optical or battery-powered handhelds provide quick, reliable Brix readings.
Key features to compare
When choosing between models, compare measurement range and units including Brix, Plato, SG, and refractive index. ATC and the calibration method, mechanical or digital, are important comparison points. The device’s accuracy, repeatability, and sample volume indicate its reliability in practical scenarios.
Durability is important when the tool will be used in breweries, farms, or field conditions. Glass and sapphire prisms differ in scratch resistance and ease of cleaning. For digital and automatic models, USB, RS232, or network connections can be important for data logging. Quick calibration and low sample volume can make routine testing much easier.
Budget and cost considerations
Handheld optical refractometers are often the most affordable option because they need no power and suit tight budgets. Digital handheld models tend to cost more than optical units but add automatic correction and clear displays.
Benchtop, automatic, and inline models are pricier, but they can deliver better accuracy, throughput, and integration. When estimating total cost, include calibration standards, spare prisms, tubing, clamps, and fittings for draft systems. Reviewing trusted brands side by side can help you choose the best feature-to-price balance.
| Use Case | Recommended Type | Important Features | Usual Price Range |
|---|---|---|---|
| Fruit fields, plants, beekeeping | Optical handheld or digital handheld | 0-35 Brix range, low sample volume, rugged design | $30 to $250 |
| Homebrewing, craft beer | Dual-scale handheld or benchtop digital | Brix, SG/Plato, ATC, quick calibration | $50 to $1,200 |
| Professional brewing and winery labs | Benchtop digital or inline unit | High accuracy, data logging, integration | $1,000-$10,000+ |
| Coffee roasting and specialty coffee | Portable digital | High resolution, quick readout, ATC | $100-$600 |
| Honey and high-sugar samples | High-Brix handheld or benchtop | High-Brix range, durable prism | $80-$2,000 |
Preparing Samples And Workspaces For Accurate Readings
A serene, immaculate workspace and meticulous sample preparation are essential for dependable outcomes. Small, consistent practices during setup significantly diminish errors during refractometer tests. This supports more consistent readings. Follow a short checklist before starting the process.
Cleaning Methods And Sample Handling
Ensure the prism remains residue-free by utilizing distilled or deionized water and a lint-free cloth. Gently wipe the prism after each use to prevent contamination and extend instrument life. For stubborn stains, employ the solvent advised by the manufacturer.
When dealing with viscous substances like honey or syrups, warm them slightly to enhance fluidity. This facilitates even distribution. Apply samples with pipettes, disposable droppers, or syringes for better control. Clear bubbles and foam before recording the result.
Managing Temperature Control And Compensation
The refractive index is temperature-dependent, necessitating samples and the refractometer to be at ambient temperature. Many digital models automatically adjust for temperature variations. For important measurements, verify that temperature compensation is working properly.
For higher accuracy, use a reliable thermometer alongside the refractometer. Use the manufacturer’s calibration guidance when operating conditions differ from the advised range. Use correction factors as required to offset temperature variation.
Sample Size And Homogeneity
Handheld models usually need only a few drops, while benchtop devices may require larger samples. For emulsions and suspensions, proper mixing helps prevent solids from scattering light and affecting readings.
For samples in fermentation, filtering or clarification can improve agreement between refractometer and hydrometer readings. Following strong sample preparation habits, including mixing, impurity removal, and temperature matching, improves precision and reduces repeat testing.
Using A Handheld Refractometer Step By Step
Accurate readings are easier when refractometer use follows the same routine each time. This section explains preparation, application, and reading interpretation across common uses. It supports consistent readings from handheld and pocket refractometers.
Getting the instrument ready
Clean the prism using distilled water and a lint-free tissue. Check the glass for scratches or residue that could affect the refractometer reading.
Set calibration before taking readings. For analog models, place distilled water on the prism and adjust the calibration screw until the scale reads 0 °Bx or the specified RI. With digital units, use the built-in routine to zero the device and verify ATC operation.
Check the light source and eyepiece focus on optical handheld refractometers. Proper light makes repeatable refractometer readings easier.
Applying the sample and reading the result
Place a few drops so the liquid fully covers the prism area without overflowing. Close the daylight plate on optical models to form a thin, even film and avoid trapped air.
For optical handheld refractometers, look through the eyepiece and rotate the focus until the reticle is sharp. Line up the shadow boundary with the scale and write down the reading.
For digital handheld refractometers, apply the sample and press the measure button. Allow the display to settle before recording the value. Many pocket refractometers show temperature-corrected readings automatically.
Recording and interpreting readings
Record both the measured value and the sample temperature. Note the scale used, such as °Bx, SG, or Plato, so results remain comparable over time.
For brewing, use refractometer and hydrometer data together or use manufacturer calculators to estimate ABV. Use the R-D approach: refractometer reading (°Bx) minus the D correction from SG conversions. When both instruments are read at the same temperature, expect roughly ±0.5% ABV accuracy in most homebrew scenarios.
In food or quality control, compare readings to target specs or conversion charts. For honey and other high-Brix products, use scales and tables designed for dense syrups to avoid misinterpretation.
Using Digital Refractometers And Automatic Models
In today’s labs and production environments, precision and consistency are key. Digital refractometers deliver quick readings and help reduce user error. Use a benchtop automatic unit for high-volume tasks or a portable digital unit for field assessments.
Device Setup And Powering
Begin with the manufacturer’s instructions for powering the device, installing batteries, and warming up the unit. Calibration with distilled water or certified solutions is essential, and ATC should be confirmed as operational.
Set measurement units to match your needs, such as °Bx for a digital Brix refractometer, Specific Gravity, or refractive index. For automatic refractometer systems in production lines, set pump rates, rinse cycles, and sample handling according to supplier recommendations.
Automatic Measurement Process
Automatic units use LED light and sensors or diode arrays to identify the refractive boundary. The system then uses algorithms to convert the signal into refractive index with temperature correction.
Many models accept autosamplers or pumps for sequential loading, measurement, and rinsing of samples. Inline automated refractometer setups allow continuous concentration monitoring. Make sure sample lines are clean and bubble-free to reduce measurement errors.
Configure sampling intervals and alert thresholds for readings outside specification. A portable digital refractometer can provide fast checks during automatic system troubleshooting.
Data Output, Logging, And System Integration
Digital refractometers display immediate results. Common export options include USB, RS232, and Ethernet. Opt for units that timestamp readings and log temperature with each measurement.
Integrate data with LIMS or SCADA to support process control and quality documentation. Many prefer automatic refractometers with native export formats for streamlined data management.
| Feature | Portable Digital Refractometer | Automatic Benchtop Refractometer | Automated Inline Refractometer |
|---|---|---|---|
| Common use | Field testing and QC checks | Lab batch testing and high-volume QC | Ongoing process monitoring |
| Calibration | Manual with distilled water | Automatic routines on schedule | Automated calibration and remote verification |
| Data output | USB, Bluetooth | USB, RS232, Ethernet | SCADA, Modbus, and Ethernet |
| Sample process | Small cuvette or sample drops | Autosampler and pumps | Production lines with pumps |
| Best for | On-the-go checks, vineyards | QC laboratories and beverage R&D | Brewing, dairy, and syrup processing |
When planning installation, match fittings and tubing to supplier specifications so flow and pressure requirements are met. A correctly configured digital Brix refractometer will provide rapid, verifiable results for both production and laboratory teams.
Calibrating And Validating Your Refractometer
Accurate measurement depends on regular calibration and validation. Start each session with a calibration check, record the results, and follow the manufacturer’s guidance. This habit improves refractometer accuracy and reduces troubleshooting time.
Calibration standards and methods
Distilled or deionized water works as the main zero-reference. The refractometer should display 0 °Bx or the specified refractive index. For multi-point calibration, use certified fluids with known Brix or refractive index values inside the device range.
Brix calibration and temperature checks
Temperature changes affect readings. Calibration at the recommended temperature or with ATC is essential. If ATC is unavailable, use the manufacturer’s tables for manual correction.
Choose calibration standards close to your sample’s Brix range. Fruit juices require low-Brix solutions, while honey and syrups need high-Brix ones. Record the lot number and expiration date of each standard for traceability.
Verifying accuracy with reference materials
Regular verification with reference materials and certified fluids is important. For critical readings, compare results with a hydrometer or Abbe refractometer in a laboratory setting. This step increases confidence in refractometer validation, essential for precise work.
In brewing and winemaking, pair refractometer readings with hydrometer Specific Gravity checks to estimate ABV. Use validated calculators or tables to reconcile discrepancies. Proper method and verification can support combined results around ±0.5% ABV accuracy.
Maintain records showing dates, lot numbers, readings, and any adjustments. Replace calibration fluids when they expire or become contaminated. Regular documentation supports quality audits and proves ongoing refractometer calibration standard control.
Refractometer Use In Brewing, Winemaking And Beverages
Refractometers are indispensable for brewers, winemakers, and roasters, streamlining the process of sugar or soluble solids measurement. This part focuses on using refractometers for wort, must, and related beverage testing. It also offers insights into their use in brewing, winemaking, cider production, and coffee roasting.
Measuring wort and calculating ABV
Before fermentation begins, refractometer readings are useful for tracking °Brix. Because alcohol changes the refractive index, accurate ABV estimation requires hydrometer SG or a correction formula. A common method uses the refractometer reading and hydrometer SG to calculate D = (SG – 1) × 1000, then applies R-D to reference tables. Keeping both samples at the same temperature helps reduce error.
Beer, wine, cider and coffee applications
Winemakers utilize refractometers to measure grape must in °Brix or degrees Oechsle, aiding in harvest planning and sugar addition. Brewers use °P or °Bx readings before and after boiling, then monitor fermentation with corrected refractometer data. Cider makers predict alcohol content from Brix values, guiding yeast and nutrient selection.
Specialty coffee professionals use refractometers to report TDS and extraction yield. A dedicated coffee refractometer helps roasters and baristas measure brew strength and refine brewing parameters. For beer and cider, a refractometer beer or beer refractometer facilitates quick field checks on tanks and kegs.
Homebrew and commercial contexts
Homebrewers often prefer handheld or digital handheld models for their simplicity. Professionals often choose benchtop or inline brewing refractometer systems for accuracy and data logging. For draft systems and soda lines, proper installation parts and regular maintenance help protect sample quality.
| Common Use | Typical Unit | Recommended Instrument | Main Advantage |
|---|---|---|---|
| Gravity checks for homebrewing | °Brix / °P | handheld best refractometer for home brewing | Low cost and quick readings |
| Professional brewery monitoring | °Bx with temp compensation | digital benchtop refractometer for brewing | High accuracy and data export |
| Wine harvest planning | Brix or Oechsle | portable refractometer for must testing | Quick sampling in the vineyard |
| Cider production | °Brix | refractometer for brewing, stable temp | Alcohol content prediction |
| Coffee extraction testing | TDS or extraction percentage | digital coffee refractometer | Consistent cup strength with recipe tuning |
| Beer draft checks | °Bx or percent solids | inline or handheld beer refractometer | Rapid draft line and keg checks |
When selecting a refractometer for brewing, consider the specific measurement needs. For home use, the best refractometer for home brewing should provide clear scales and easy calibration. Coffee enthusiasts should choose a refractometer that reports TDS. For tanks and kegs, choose a durable beer refractometer suited to repeated checks.
Specialized Applications For Honey, Glycol, Plants And Salinity
Specialty refractometry covers many tasks, from measuring honey moisture to checking coolant levels and plant ripeness. Choosing the right instrument and calibration range is critical for reliable and consistent measurements. Below, we provide targeted advice and best practices for common niche applications.
Measuring Honey And Syrups
Honey analysis necessitates instruments capable of high-Brix readings, given its typical range of 60 to 90 °Bx. Utilizing a syrup refractometer or a digital model designed for honey, with specific scales, facilitates rapid and precise moisture content determination. It is advisable to warm viscous samples slightly and stir them thoroughly before testing. Supplier-provided conversion charts help translate Brix values into moisture percentages and quality grades.
Glycol And Coolant Concentration
Effective concentration control in cooling systems is important. A digital glycol refractometer can measure ethylene or propylene glycol concentration as a percentage or freezing-point equivalent. Use handheld units for quick checks and automatic units for ongoing HVAC monitoring. Use the manufacturer’s recommended calibration fluids for consistent results.
Plant, Juice And Salinity Measurements
Diverse applications in field and laboratory settings demand specific ranges. Plant analysis often uses a 0 to 12 °Bx Brix refractometer to assess soluble solids and harvest timing. In juice and beverage processing, a refractometer for sugar content is indispensable for maintaining recipe consistency and quality control. For marine and food brine applications, a digital saltwater refractometer is necessary, capable of measuring in PPT or percent to ensure proper salinity levels for aquaculture and canning.
Always match the instrument range to the application and use the correct calibration fluid. Review trusted suppliers and product pages before buying so specifications match the measurement task and records remain traceable.
Maintaining, Troubleshooting And Extending Instrument Life
Maintaining a refractometer supports longer life and dependable performance. Regular checks and small adjustments after each use can prevent bigger failures. Below are essential care steps, common problems, and signs that repair or replacement may be needed.
Regular Maintenance Checklist
Clean the prism after each use with distilled water and a lint-free cloth. For difficult residue, use mild isopropyl alcohol only as directed by the manufacturer.
Examine the prism for any scratches or chips. Inspect seals and O-rings on both benchtop and inline models to prevent leaks and contamination.
Routine calibration with distilled water and certified standards is important. Keep a detailed log of calibration dates and results to monitor any drift over time.
Replace batteries in portable models before they fail. Check firmware and software updates on digital units to maintain full functionality.
Troubleshooting Common Problems
A dirty, scratched, or bubble-covered prism can cause inconsistent readings. Cleaning, drying, and recalibrating the device can often resolve the problem. Make sure the sample and instrument are at the same temperature before measurement.
If the zero reading is wrong, recalibrate with distilled water. When the zero keeps moving, check optical surfaces and prism alignment for damage.
Digital error codes or a blank display indicate power or firmware problems. Reboot the unit, confirm stable power, and clean the sensors. Check the manual for code meanings before attempting internal repairs.
Inline and automatic system malfunctions often come from blocked sample lines, faulty pumps, or clogged filters. Remove air locks, confirm rinse cycles function, and inspect tubing for wear. Keeping spare refractometer parts available can reduce downtime.
When To Repair Or Replace
Handheld units should be replaced when prism damage cannot be repaired or calibration drift exceeds manufacturer specifications. A crushed or deeply scratched prism is rarely restored fully through repair.
For automatic and benchtop instruments, use the manufacturer or an authorized service center for sensor work or factory recalibration. Before authorizing repair, compare the estimate with replacement cost.
For system installations such as draft beer, soda, or RO setups, track the lifetime of fittings and tubing. Consider replacement when repair costs approach new-unit pricing or your measurement needs shift. Keep common refractometer parts and tubing in stock for fast fixes and longer instrument life.
| Item | Care Action | Maintenance Frequency | Effect On Life |
|---|---|---|---|
| Prism cleaning | Clean with distilled water and lint-free wipe; use alcohol if needed | Every use | Prevents drift and surface damage |
| Calibration | Use distilled water and certified standards; log results | Per protocol or weekly | Supports accuracy and extends useful life |
| O-rings and seals | Inspect regularly and replace worn parts | Monthly for heavy use | Reduces leaks and internal damage |
| Battery power and firmware | Replace batteries and update firmware | As needed; check monthly | Helps maintain digital reliability |
| Tubing and inline fittings | Inspect, clean, replace worn tubing and clamps | Monthly or according to system schedule | Helps reduce downtime and repair demand |
Where To Buy And Get Professional Support For Commercial Use
Start by choosing a device that fits your operational requirements. Refractometers can be sourced from lab suppliers, beverage equipment distributors, and reputable online retailers. It is important to compare accuracy, Automatic Temperature Compensation (ATC), range, and connectivity options. This ensures you select the most suitable refractometer for handheld testing, benchtop analysis, or inline monitoring.
For additional hardware, consider Installation Parts Supply. Installation Parts Supply, a factory-authorized distributor, offers a wide range of refractometers and brewery installation supplies. Available supplies may include tubing, clamps, regulators, carbonators, and fittings. These components help maintain sanitary flow and protect sample integrity when a commercial refractometer is integrated into a draft system.
When building a draft or direct-draw system, compatible components are critical for avoiding flow issues. Choose draft beer installation parts that match your taps, regulators, and dispensing lines. Correct part selection helps lower contamination risk and maintain consistent readings.
For inline sensing and data integration, partner with installers who understand beverage systems. Use professional beverage equipment installers and factory-authorized distributors for design, parts matching, and compatibility review. Their expertise helps ensure the commercial refractometer operates reliably under production conditions.
For more complex systems, get guidance from certified technicians. They are essential for integrating data logging to SCADA or LIMS, automated sampling, and ensuring regulatory traceability and calibration certification. Laboratory services can also validate procedures for ABV compliance and commercial labeling.
Refer to the table below for a comparison of common buying choices and support options when equipping a commercial beverage line.
| Buying Option | Most Useful For | Typical Support | Associated Supplies |
|---|---|---|---|
| Laboratory suppliers, Ametek, Thermo Fisher | Calibration needs and benchtop precision | Calibration standards, technical datasheets | Certified fluids and reference materials |
| Local professional dealers and beverage equipment distributors | Bar and taproom integrated systems | Installation support and component matching | Fittings, carbonators, and Taprite regulators |
| Online retailers and specialty stores | Small-lab handheld and digital instruments | Customer reviews, return policies | Sample cups, handheld cases, cleaning kits |
| Installation Parts Supply and other factory-authorized distributors | OEM needs and commercial installations | Warranty support, factory parts, OEM components | Commercial refractometer units, brewery installation supplies |
| Certified lab services | Traceable calibration and regulatory compliance | Certificates, validation, and documentation | Reference materials and supporting documentation |
Conclusion
Using a refractometer provides fast and precise measurements of soluble solids, sugar content, salinity, and glycol concentration across many industries. This guide covered the core principle of refractive index measurement. It underscored the significance of selecting the appropriate instrument, ranging from handheld to benchtop, automatic, and inline models. For food and beverage users, understanding refractometer applications and choosing the right device is important. It prevents costly mistakes and ensures consistent quality.
Accurate results depend on good sample preparation, temperature control, and regular calibration. For individuals engaged in small-scale brewing or winemaking, a handheld or digital handheld refractometer is often the most suitable choice. For larger operations or continuous monitoring, benchtop, automatic, and inline models are often better suited. These units can provide data logging and integration for production and regulatory requirements.
It is advisable to complement refractometer readings with hydrometer checks, where feasible, most pertinent in brewing and winemaking for ABV calculations. This cross-checking supports quality control by confirming results. Maintaining detailed calibration and maintenance records is also vital. Working with trusted suppliers for parts and installation supports refractometer longevity and reliability. Using these practices can help you gather consistent and reliable data across food and beverage applications.
