For copper pipe work, compression fittings give a practical way to join pipes without using solder. These connectors are widely used by trade professionals and homeowners because they make pipe connections faster and easier. A typical assembly includes a fitting body, a compression ring or ferrule, and a compression nut. This nut tightens against the ferrule, producing a leak-resistant seal.

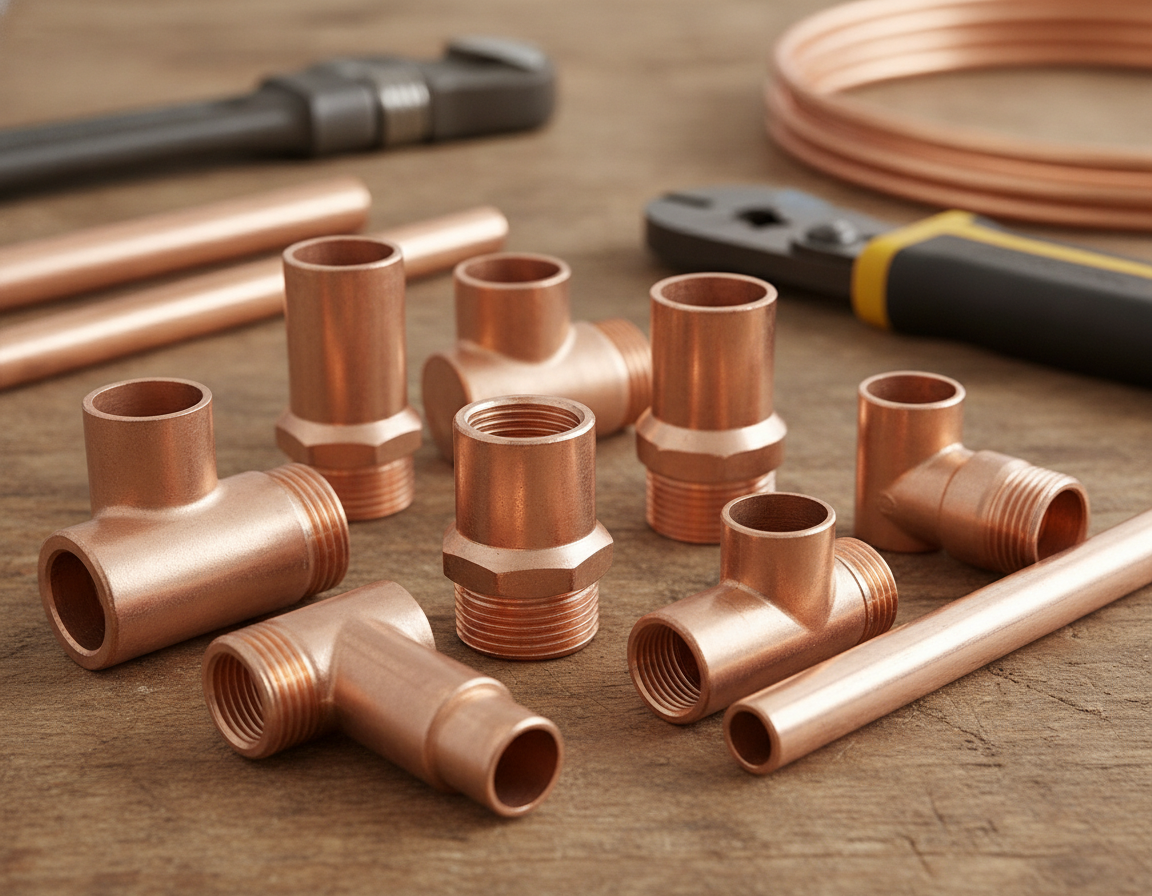

1/4 Compression T Fitting
For a leak-free installation, follow several proven fitting practices. Begin with clean cuts and remove burrs from the tube end. Then look over the tube end for scratches, distortion, or other damage. After assembly, hand-tighten the nut before using a wrench for final tightening. Use two wrenches so the fitting body is held steady and the pipe does not twist. Avoid overtightening, and never reuse a ferrule that has already been compressed if you want a dependable, leak-free joint.
Compression fittings are often preferred over soldering for many applications. They remove the need for a flame and are reusable in many scenarios. One major benefit is that they can be installed more easily in confined or awkward spaces. However, they are bulkier than soldered joints and may not be ideal in high-stress locations or hidden areas that are hard to inspect. It is essential to use matching components and follow the manufacturer’s torque or turn specifications for reliable performance.
- Compression fittings connect copper tubing without solder or flame.
- The primary parts are the fitting body, ferrule or olive, and compression nut.
- For dependable seals, cut tubing square and deburr the tube end.
- Use two wrenches, tighten carefully, and avoid overtightening to reduce leaks.
- Choose brass or compatible materials and follow manufacturer guidance.
How Compression Fittings Work And What They Are
A compression fitting secures tubing without requiring solder, flame, or heat. They rely on a mechanical connection. This connection compresses a ring against the pipe to form a seal. These joints are useful for tight spaces and field repairs, where a fast connection is essential.
Core Components
The core components include the fitting body, the ferrule, and the compression nut. The body contains the seat and thread. The ferrule, also called an olive, is positioned between the compression nut and the pipe. The compression nut threads onto the body to move the ferrule forward.
How The Seal Works
The seal is created through radial compression. When the compression nut is tightened, the ferrule is pushed into the tapered bore of the fitting body. That movement causes the ferrule to deform slightly and press against the outside diameter of the tubing.
This creates a line-contact seal that secures the tubing and helps resist leakage. The ferrule’s shape and material have a direct effect on seal performance when pressure or temperature changes.
Common Industry Names And Variations
Different trades use varied terms for the same idea. You may hear compression joint, compression couplings, or compression nut in plumbing supplies and HVAC catalogs. In instrumentation work, vendors list compression joints and compression fittings plumbing alongside flare and push-fit options.
| Industry Term | Usual Application | Primary Detail |
|---|---|---|
| Compression fitting nut | Domestic plumbing and gas runs | Threaded tightening to compress ferrule |
| Ferrule | Instrumentation and mechanical service lines | Compresses to grip and seal the tube |
| Compression connection | Service repairs and pipe connections | No-solder joint often serviceable later |
| Compression joining couplings | Pipe extensions and joins | Straight coupling with ferrule on each side |
| Compression plumbing fittings | General plumbing installations | Broad size and material availability |
Copper Tubing Compression Fittings
Material selection is critical to compression-joint performance. It affects performance, durability, and the risk of corrosion. Copper fittings are usually a sensible match for copper tubing. Their similar thermal expansion characteristics help maintain consistent metal contact.
Brass compression fittings also deliver helpful ductility. This characteristic helps in forming reliable seals without damaging the tubing.
Stainless steel compression fittings are ideal for high-pressure or high-temperature systems. They also resist many aggressive fluids. Plastic compression fittings are suitable for low-pressure domestic water lines. They avoid metal-to-metal contact and can reduce dissimilar-metal problems.
Materials should be matched to the job, pressure rating, temperature, and fluid type. For refrigeration and some plumbing, copper or brass parts are recommended. These materials help reduce mixed-metal stress. For applications requiring high mechanical strength, stainless steel is a better choice. Just remember, its harder ferrules can deform soft tubing if not sized correctly.
With copper tubing, avoid pairing the line directly with carbon steel or other incompatible metals. Galvanic corrosion can quickly accelerate deterioration where the metals meet. This cuts down the service life. If mixed metals are unavoidable, use dielectric unions, insulating sleeves, or choose compatible materials to limit electrical contact.
Before assembly, inspect the tube surface, finish, roundness, and wall rigidity. A proper surface quality ensures ferrules bite evenly and form a lasting seal. Always follow the manufacturer’s guidance for material compatibility. This reduces leaks and increase the life of the joint in the field.
Compression Tee And T Fitting Types And Sizes For Copper Tubing
The correct compression tee depends on flow requirements, available space, and tubing size. These fittings are important in plumbing, refrigeration, and instrumentation. Ensuring a proper fit between ferrule geometry and body taper is necessary to preventing leaks.
Variants For Branching And Tight Spaces
Straight tees ensure full flow through three aligned ports. Branch tees divert flow into a side line without sharp turns. Compact tees are designed for wall cavities and tight areas where standard tees may not fit. They support common residential sizes, including Compression Tee 1/2.
Common Size Labels And Cross-Fit Options
Installers often specify parts by nominal tube OD. Popular choices include the 1/4 Compression T Fitting and the 1/2 Compression T Fitting. The 1 4 Tee is frequent for small-diameter runs. For larger branches, the 1/2 Inch Compression Fitting and 1/2 OD Compression Fitting are common. Cross-fit options such as 1/2 X3/8 and 3/8 X 1/2 Compression Fitting make it possible to mix sizes when required.
Combination Tee And Adapter Options
Combination tees like the 1/2 X 1/2 X 3/8 Tee are used for size transitions. A 1/2 X3/8 adapter steps a 1/2 line down to a 3/8 branch. The 1 2 To 1 4 Compression Fitting gives a compact reduction for instrumentation taps, sensors, or small branches.
Brass Tee And T-Joint Options
Brass is the commonly chosen material for copper tubing connections due to its corrosion resistance and thermal expansion compatibility. Look for T Brass Fitting options for strong joints. The 1/2 Brass Tee and 1/2 Tee Brass are common choices for main lines and branch runs. Before mixing brands, confirm thread pitch, ferrule fit, and body taper for a reliable seal.
| Tee Type | Typical Use | Common Size Labels | Material Considerations |
|---|---|---|---|
| Straight Compression Tee | Straight main run with branch connection | Compression Tee 1/2, 1 4 Tee | Brass preferred for copper tubing |
| Side Tee | Outlet from a main pipe run | Commonly labeled 1/2 or 1/4 Compression T Fitting | Use matched ferrules and bodies |
| Low-Clearance Tee | Tight spaces and wall cavities | Compression Tee 1/2 and 1/2 Inch Compression Fitting | Compact body with the same compression sealing action |
| Mixed-Size Tee | Size transitions and instrumentation | Mixed-size labels such as 1/2 X3/8 | Adapter options include 1 2 To 1 4 Compression Fitting |
| T Brass Fitting | Corrosion-resistant copper systems | T Brass Fitting, 1/2 Brass Tee | Matches copper; check pitch and taper |
Compression Fittings Vs Soldering And Other Joining Methods
Choosing the right joint depends on the job’s conditions and the fitting’s capabilities. Compression fittings are ideal for tight spaces and areas near flammable materials, as they don’t require flame. Soldering, on the other hand, is better for forming a lasting bond in visible, permanent installations.
Benefits For Fast Installs And Confined Work
No-flame fittings are practical for emergency repairs and retrofitting, as they avoid the need for hot work permits or torches. They usually need only basic hand tools, which makes them useful for fast repairs. In low-stress systems, limited reuse may be possible, which can help during testing or section replacement.
Durability Limits And Fitting Profile Issues
Compression fittings introduce bulk compared to soldered seams. Ferrules can make it difficult to remove fittings, limiting their reusability. Over time, vibration or pulsation can make fittings to loosen, making soldered or brazed connections more suitable for high-stress applications.
Application Decision Guide
For plumbing repairs in tight spaces, compression fittings are useful when a no-flame connection is needed. For visible runs where appearance is important, soldering is the better choice.
For gas lines, compression fittings are common for short runs. Always check local codes and use approved materials. Regularly inspect joints to ensure safety.
In HVAC and refrigeration, choose copper fittings designed for refrigerants. For heavy thermal cycling, brazed or flare connections may last longer than compression fittings. Compression fittings such as a Compression Tee Fitting or T Compression Fitting can suit service taps, testing points, and temporary connections.
For instrumentation, select fittings that support leak-tight, high-pressure, or high-purity lines. Stainless-steel compression options are excellent, but confirm they meet pressure and media ratings before installation.
| Comparison Factor | Compression Fitting | Solder Or Braze |
|---|---|---|
| Tools Required | Simple hand tools | Heat source, flux, solder, or filler metal |
| Repair Speed | Fast for repairs | Slower setup, longer cure/cool time |
| Installed Profile | Larger visible profile | Low profile, neat runs |
| Reuse Potential | Limited reuse depending on ferrule condition | Cut-out repair usually required |
| Dynamic Stress Performance | Moderate, with loosening possible | Generally stronger under vibration |
| Common uses | Plumbing, gas lines, quick HVAC fittings, service tees | Low-profile permanent installations |
Match the fitting type to the system’s needs, adhering to pressure, temperature, and material compatibility guidelines. Compression fittings, including Compression Tee Fittings or T Compression Fittings, are appropriate for plumbing, gas lines, HVAC fittings, and instrumentation when serviceability or a no-flame approach is necessary.
Step-By-Step Installation Best Practices For Reliable Joints
A reliable installation starts with careful preparation and a clear assembly sequence. Every step matters because poor preparation can cause leaks or damage. This section explains how to install compression fittings on copper tubing and when to source compatible parts or tools from Installation Parts Supply.
Preparing copper tubing correctly is essential for a good seal. Use a tubing cutter to cut it squarely, then remove any burrs with a reamer. Check the tube end for nicks, scratches, dents, or deformation. Clean the tube and check the fitting and ferrule for damage before starting the assembly.
Begin by sliding the nut onto the pipe, ensuring the threads face the end. Then place the ferrule or olive onto the pipe. Insert the pipe fully into the fitting body, ensuring the ferrule seats correctly. Hand-tighten the nut first, align the assembly, and then use a wrench for final tightening.
Proper tightening is central to a secure compression seal. Use two wrenches to hold the fitting body while tightening the nut. Follow the manufacturer’s instructions for rotation-based turns, not just torque readings. Avoid over-tightening, as it can flatten the ferrule and lead to leaks.
Replacement ferrules are often required after disassembly. Once an olive or ferrule has been compressed, it should not be reused. If the ferrule is stuck, remove it with a ferrule puller or carefully cut it off without damaging the tube or fitting body.
For plastic tubing, an insert is necessary to maintain shape. Copper tubing does not need inserts. After reassembly, open the supply slowly and inspect the joint for leaks. If needed, tighten in small measured increments. For compatible parts, sizing details, and specifications, consult Installation Parts Supply.
Design And Ferrule Details That Affect Performance
The choice of ferrule strongly affects a compression joint’s performance under pressure and over time. Both one-piece and two-piece ferrules have benefits, limitations, and installation considerations. The design of the ferrule must align with the tubing and fitting body to ensure a secure and lasting seal.
Ferrule shapes and materials
Ferrules are most often made from brass or stainless steel. For applications requiring chemical resistance or high-temperature tolerance, graphite or specialty alloys are used. A one-piece ferrule is simple to install and can work well with softer copper tube. On the other hand, a two-piece ferrule includes a rear ferrule, preventing rotation and galling, which is essential for stainless systems.
Asymmetrical and symmetrical ferrule choice
An asymmetrical ferrule must be installed in the correct direction to support consistent performance. It is often preferred for high-reliability applications. In contrast, a symmetrical ferrule can be installed in either direction, making it quicker to assemble. However, it may perform less reliably on hard plastics where OD tolerance variations can contribute to leaks.
Line contact and surface contact seal geometry
Ferrule shape determines whether the seal is mainly line-contact or surface-contact. Line contact seals are better suited to creep and vibration. However, overtightening can turn a line-contact seal into broad surface contact, which may increase leak risk over time.
Tubing factors and material behavior
Metal tubing must have smooth walls and precise cuts to allow proper ferrule seating. Copper tubing, even when stored in coils, can have slight irregularities that affect the seal. Soft plastics and PTFE exhibit cold flow and creep under compression, leading to a loss of seal integrity over time.
Mitigations for PTFE cold flow and soft tubing
To counteract PTFE cold flow, consider using tubing inserts or redundant internal O-rings. Hardened ferrules can also help distribute the load. In high-pressure or high-purity environments, select materials and lubricants that minimize galling and residue. Ensure that the ferrule material matches the tubing and application requirements to maintain a reliable seal throughout its service life.
Installation Mistakes And Compression Fitting Troubleshooting
When troubleshooting compression fittings, start with the basics: check the nut tightness, tubing alignment, and ferrule condition. Minor leaks often come from under-tightening, poor tube seating, or a mis-seated ferrule. To avoid damaging the tubing, stabilize the fitting body with one wrench while tightening the nut with another.
Problems from overtightening may include crushed ferrules, distorted pipe, and leaks that do not stop. Too much tightening force can flatten the ferrule or damage copper tubing, producing a weak seal. If you notice flattened tubing or a gouged ferrule, it is best to cut back the tubing and replace it with a new ferrule and nut.
Under-tightening results in a gap, allowing slow leaks. For minor weeps, apply small, incremental turns with a wrench until the leak stops. Avoid over-tightening by using incremental tightening for a reliable seal.
Misalignment and twisting stop proper ferrule compression. Make sure the tubing enters the fitting body straight and seats fully. If the ferrule is misaligned, it can jam or become difficult to remove. Remove a stuck ferrule with a ferrule puller or carefully cut it away while protecting the tubing.
Identifying and fixing leaks involves inspecting the ferrule seating and part condition. Any damaged ferrule, nut, or fitting body should be replaced. For a quick fix, incremental tightening can stop small leaks until a proper repair can be scheduled. If the leak persists, consider re-cutting the tube end and reassembling the fitting.
Dealing with corrosion and galling requires both repair and prevention. Corrosion can pit the sealing surfaces, leading to recurring leaks. Galling can seize the nut and body, making disassembly difficult. Apply penetrating oil to stuck nuts and allow time for soaking. If threads or faces are damaged, replace the affected components.
Choosing the right materials can limit corrosion and galling. Avoid pairing carbon steel with copper to prevent galvanic reactions. Choose ferrules and fittings suited to the system’s chemistry, pressure, and temperature. In cleanroom or high-purity environments, volatile cleaning agents can increase galling risk; use ferrules designed to resist galling and compatible lubricants when allowed.
Stuck nut recovery usually starts with penetrating oil and careful patience. If the nut won’t budge, cutting and replacing the nut and ferrule may be faster than prolonged attempts. Use the correct tools so the fitting body is not damaged.
When a compression joint is not the right choice, other joining methods should be considered. Systems exposed to constant vibration, long-term dynamic stress, or strict low-profile needs may benefit from soldering, mechanical crimp systems, flare fittings, or welded joints. Compare soldering vs compression for permanence, profile, and code requirements when planning a repair or new installation.
| Problem | Probable Cause | First Action | Permanent Solution |
|---|---|---|---|
| Small weep | Loose nut or poorly seated ferrule | Tighten gradually using two wrenches | Install new ferrule and nut and re-cut tube end |
| Ongoing leak despite tightening | Crushed ferrule or distorted tubing | Cut tube back and reassemble with new parts | Use torque guideline and avoid overtightening |
| Stuck ferrule or nut | Ferrule bite, seat deformation, or galling | Use penetrating oil, ferrule puller, or careful cutting | Replace affected parts; choose anti-galling materials |
| Corroded compression joint | Galvanic reaction or aggressive fluids | Replace corroded parts | Use compatible metals and follow applicable codes |
| Leak under vibration | Compression fittings not intended for dynamic stress | Monitor and secure lines to reduce movement | Use soldering, welded joints, or crimp systems as alternative to compression fittings |
Final Thoughts
In summary, Copper Tubing Compression Fittings provide a versatile, flame-free way to join copper tubing across many applications. They work well when materials are matched and installation techniques are followed correctly. Brass, copper, stainless steel, and certain plastics are compatible, provided they avoid galvanic corrosion and thermal mismatch.
The Installation Parts Supply guide advises replacing ferrules during reassembly and ensuring fittings are tightened to manufacturer specifications. That practice helps maintain reliable sealing.
Choose compression fittings for quick repairs, confined spaces, and removable joints. They have limitations compared to soldered connections. Long-term performance depends on ferrule design, tube quality, material compatibility, and correct assembly order.
In high-pressure or high-vibration service, choose ferrules and fittings rated for those conditions. Consider alternative joining methods when necessary.
This summary highlights the value of careful installation and routine inspections. Ensure cuts are square and deburred. Use the sliding nut and ferrule correctly, add an insert where required, hand-tighten first, and finish with measured wrench turns.
Use manufacturer torque or turn-count guidance to avoid leaks, ferrule damage, and tube distortion. For matching parts and compatible ferrules, check with qualified suppliers. Look for suppliers that carry 1/4 Compression T Fitting, 1/2 Compression T Fitting, and brass tee options suited to the project.
