Nearly 73% of U.S. homes built before 1980 use copper for part of their water supply. This highlights the enduring importance of copper pipe fittings in plumbing systems. This guide explains the key copper fittings commonly found in plumbing. They connect, redirect, and regulate water, gas, and refrigerant flows. Common examples include elbows, tees, couplings, adapters, unions, caps, plugs, compression fittings, flare fittings, and push-to-connect copper pipe connectors.
Visit website of 5 8 OD Copper Pipe
Copper remains a favorite among contractors and DIYers thanks to its durability, heat resistance, and water-quality benefits. When installed correctly, copper fittings can last decades. This makes them a cost-effective choice for many projects.
In this article, we’ll discuss how to identify fittings by function and size. It also compares soldered joints with mechanical connections. You will also learn how to locate compatible parts from reliable suppliers such as Installation Parts Supply. The goal is to give you straightforward advice for selecting the right plumbing fittings for your next project.
Copper Pipe Fittings: Overview And Why Choose Copper
Copper pipe fittings are a preferred choice for both residential and commercial plumbing. Because they combine strength, workability, and long-term reliability, they are ideal for many systems. This overview highlights the main reasons plumbers and contractors opt for copper in new constructions and repairs.
The Benefits of Copper
Copper is valued for its durability and malleability, which allows fittings such as elbows and tees to be formed easily without cracking. Because it can withstand high temperatures, it works very well in hot-water supply systems and boiler loops. Copper also offers bacteriostatic properties, helping support safer potable water when compared with some plastics. Copper can be joined by soldering, press systems, compression fittings, or push-fit methods, which adds flexibility to a project.
Longevity and corrosion resistance
When installed properly, copper tubing can last 70 to 80 years. Its surface oxidation creates a protective patina that slows deeper corrosion and supports long-term durability. High-quality material, proper fluxing, and clean joints are essential for preventing pinhole leaks and early failure. Regular inspections and the use of correct fittings can further extend its service life in both supply lines and HVAC loops.
Applications Where Copper Outperforms Other Materials
Copper outperforms many alternative materials in hot-water systems, refrigeration lines, and high-pressure uses. In HVAC and refrigeration work, pipe 5 8 and copper tube 5/8 sizes are commonly used in refrigerant circuits because they perform reliably under heat and pressure. Copper fittings can tolerate higher temperatures and retain rigidity under stress better than PVC or PEX. Compared with multilayer or composite pipes, copper is less vulnerable to impact damage and has a long, proven history in legacy systems.
| Attribute | Why Copper Excels | Typical Use |
|---|---|---|
| Strength and Durability | High tensile strength and wear resistance | Hot-water supply, boiler loops |
| Temperature tolerance | Handles high temperatures without softening | Water heaters and HVAC lines |
| Corrosion performance | Forms protective patina that slows degradation | Long supply runs in homes |
| Joining options | Soldering, brazing, compression, push-fit, press | New installations and retrofit repairs |
| Common sizes | Includes pipe 5 8 and copper tube 5/8 used in refrigeration | Refrigerant circuits and tight commercial runs |
Common Types Of Copper Pipe Fittings Used For Supply Lines
Selecting the right copper fittings is essential for a successful project. This section covers the essential fittings used on water supply lines, including fittings for changes in direction and service access. Be sure to consider connection style, pipe size, and material compatibility as you plan.

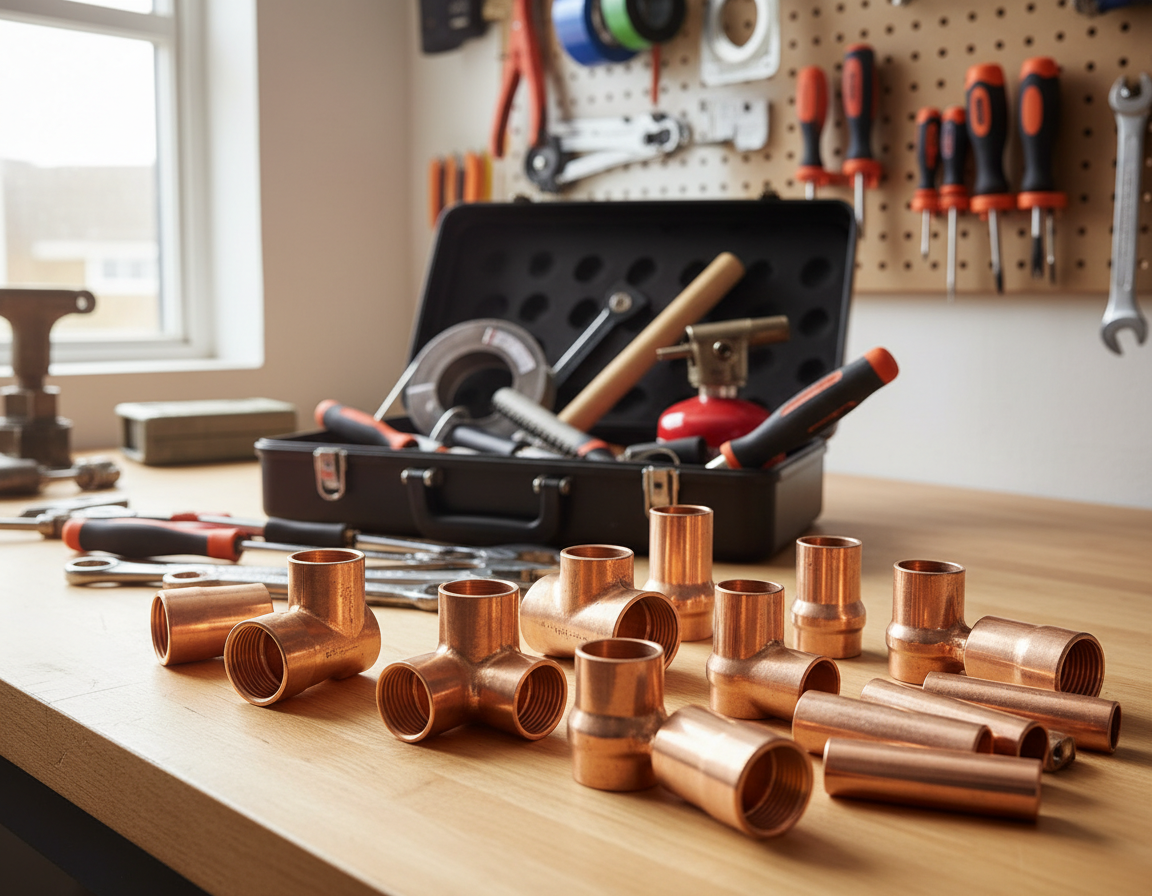

Elbows, Tees, And Crosses: Changing Direction And Branching
Elbows guide flow around corners and are available in 90°, 45°, and 22.5° configurations. They are essential when routing around obstacles or following wall lines. Tees split or combine flow for three-way connections, common in kitchens and bathrooms. Cross fittings connect four directions and are ideal where system lines meet.
These fittings come in various styles, including sweat/soldered, press, and compression. Select the connection type that fits your copper pipe connectors and the installer’s skill level.
Couplings, Adapters, And Unions For Joining And Service
Couplings are used to join two pieces of copper pipe with the same diameter. Reducing couplings handle different sizes. Adapters are used to convert between materials and thread styles, such as copper-to-brass or copper-to-PEX.
Unions make it easy to separate sections for repairs or equipment servicing. They’re perfect for where a valve or fixture needs periodic removal. Ensure unions and adapters match the pipe OD or nominal size to prevent leaks.
Caps, Plugs, And Clean-Outs For Sealing And Access
Caps seal an end of a line, while plugs thread into fittings to seal branches. Both fittings are commonly used for pressure testing and temporary shutoffs. Clean-outs provide access to drain lines for maintenance and blockage removal.
You should choose caps, plugs, and clean-outs that are compatible with the system material and pressure. Make sure the fitting size reference—nominal, OD, or ID—is correct, since this is especially important for 5 8 copper fittings and similar parts.
As you plan a project, make sure copper pipe connectors, couplings, adapters, and unions are compatible with the pipe type. This prevents fit issues and simplifies maintenance.
Copper Compression And Push-To-Connect Fittings
Compression and push-to-connect fittings streamline copper plumbing, making it faster and safer in many scenarios. They are ideal when using a soldering torch is impractical or when a quick repair is needed. The following section covers how each system works, where each is appropriate, and what installation tips matter for 5/8 copper tube projects.
How Compression Fittings Create A Seal
Compression fittings use a nut and a ferrule to create a seal. As the nut is tightened, the ferrule compresses against the tube and grips the copper. This creates a leak-resistant joint without using heat. They are commonly used on supply lines and for repairs where a torch cannot be used easily.
These joints work well across multiple sizes, including 5 8 copper pipe fittings. When installed correctly, they allow for disassembly, making them ideal for accessible valves and meter connections.
Push-To-Connect Fittings For Fast Installations
Push-to-connect copper fittings, also known as quick-connect fittings, allow you to push a deburred tube into the body until it clicks. They require no solder, no crimping, and no special tools. This ease of use makes them popular among both DIYers and professionals working in confined areas.
These fittings are suitable for common sizes like 5/8 copper tube. Most brands list pressure and temperature ratings for these fittings. For reliable performance, it is essential to match the fitting to the tubing type and follow the manufacturer’s insertion-depth guidelines.
Why These Fittings Are Better Than Solder In Some Jobs
With compression and push-fit copper fittings, there is no need for a torch, flux, or open flame. That helps reduce fire hazards in occupied buildings and can speed retrofit projects. They save time on emergency repairs and in situations with limited clearance.
Mechanical fittings can be more expensive per piece and may have lower temperature ratings than soldered joints, so that should be kept in mind. Before installing quick-connect fittings on hot-water or high-pressure lines, always check their ratings. When properly used, these fittings provide a safe and flexible alternative to soldering in many plumbing applications.
Sweat And Soldered Copper Fittings
A sweat connection forms a strong bond between a fitting and a pipe by using flux and filler metal. Brazing, on the other hand, employs higher heat and a different filler that melts above 840°F. It’s commonly used in refrigeration and HVAC joints. Both approaches can create long-lasting, durable joints when performed correctly.
Overview of techniques
Sweat copper fittings use solder to fill the gap between copper tube and fitting. Brazing copper pipe uses a hotter flame and brazing rod and is ideal for joints exposed to higher pressure and temperature. Which method to use depends on the needs of the system and any applicable local regulations.
Required Tools and Safety Gear
Important tools include a tube cutter, deburring tool, wire brush or emery cloth, flux, solder or brazing rod, and a torch. Propane is commonly used for soldering, while brazing is better handled with MAPP or acetylene. Protective goggles, a face mask or respirator, heat-resistant gloves, an apron, and safety shoes should always be worn.
Soldering Tips Step by Step
- Cut the copper tube 5/8 section squarely and deburr the edge for a smooth fit.
- Clean both pipe and fitting with emery cloth or a wire brush until bright copper appears.
- Apply flux to the cleaned surfaces, assemble the joint, and twist it slightly to spread the flux evenly.
- Use an enveloping flame to heat the fitting evenly, and when brazing copper pipe, watch for a faint red tint as heat increases.
- Feed solder or brazing rod at the joint; allow capillary action to draw filler around the seam.
- Allow the joint to cool naturally, and then clean away soot and flux residue with a suitable cleaner.
When to choose soldered fittings
Opt for copper solder fittings for a permanent, reliable joint in potable water systems and moderate temperatures. Brazing is generally better for HVAC or refrigeration systems where greater temperature resistance is required. Any work involving 5/8 copper tubing or copper tube 5/8 sized lines should follow manufacturer instructions and code requirements for pressure compatibility.
Important Practical Considerations
A skilled technique is required to prevent cold joints and porosity. Inspect every joint to confirm full solder coverage, and pressure-test the system before it is insulated or concealed. Sweat copper fittings are a staple for many plumbing jobs, while brazing copper pipe is ideal for demanding HVAC and refrigeration applications where durability is critical.
Specialty Copper Fittings For HVAC And Refrigeration
To move refrigerant safely, refrigeration and HVAC systems depend on precisely sized tubing and fittings. Materials and connection types are chosen by technicians based on pressure, access for service, and code rules. A good understanding of common fitting styles and sizes helps avoid leaks and maintenance headaches.
5/8 copper pipe is often used for liquid and suction lines in light commercial and residential systems. It’s important to confirm whether the spec refers to outside diameter (OD) or nominal size before ordering parts.
5 8 copper tube must be paired with fittings sized for that outside diameter. Mismatched parts may create unsafe joints and poor seals. When selecting copper pipe fittings refrigeration components, use manufacturer compatibility charts.
Uses For 5/8 Copper Pipe And 5/8 Refrigeration Tubing
For refrigerant lines, precise bends and consistent wall thickness are essential. A length of 5 8 copper refrigeration tubing is suitable for liquid lines and smaller suction runs. The 5/8 OD copper tubing size is commonly used for designing service valves, filter driers, and meters.
Flare, Bite-Type, And Brazed Fittings Used On High-Pressure Refrigerant Lines
A flare fitting seals by compressing the flared end of a tube under a flare nut. Technicians prefer flare fittings where serviceability is important, such as around gauges and access panels. For field service, flare joints can be tightened by hand.
Bite-type fittings rely on a ferrule that bites into the wall of the tube when tightened. Installers often prefer bite-type fittings when there is limited space or when flaring is difficult. These fittings are valued in mobile applications because they assemble quickly and resist vibration well.
Brazed fittings create metallurgical joints with strong, leak-resistant bonds. HVAC systems operating at high pressures or elevated temperatures often need brazed connections. For certain refrigerants and high-pressure circuits, codes and manufacturers may require brazing.
Sizing Notes: 5 8 Copper OD, ID, And Selecting Compatible Fittings
Be sure to confirm the difference between 5/8 od copper tubing and 5/8 id pipe before purchasing fittings. Pipe with a 5/8 id has a smaller outside diameter than tubing labeled 5/8 OD. Verifying both OD and ID helps avoid fitting mismatches and the leaks that may follow.
| Characteristic | 5/8 OD Copper Tubing | 5/8 ID Pipe |
|---|---|---|
| Typical application | Refrigerant liquid and suction lines, service connections | Less common for refrigerant lines, more common in plumbing |
| Compatible Fittings | Flare fittings, bite-type fittings, and brazed fittings rated for 5 8 copper tube | Threaded or compression fittings sized to inner-diameter plumbing standards |
| Installation notes | Check flare nut size and ferrule type before flaring or tightening | Measure the OD when adapting to HVAC components to ensure proper fit |
| Pressure rating suitability | Suitable for high-pressure refrigerant circuits with the correct wall thickness | Varies by pipe class and is often lower than refrigeration-rated tubing |
When selecting parts, match the fitting specification to the tubing OD and choose copper pipe fittings refrigeration products that state compatibility with 5/8 od copper tubing. Maintain a stock of bite-type fittings and flare fittings for field repairs. Use brazed fittings wherever system pressure or code requirements call for permanent, high-strength joints.
Choosing The Right Copper Fitting: Sizing, Material, And Code Considerations
Choosing the right copper fitting involves precise measurements and understanding performance ratings. It’s essential to read labels carefully to determine if they use outside diameter or nominal sizing. This is a critical step for preventing leaks and ensuring the fitting matches the needs of the system.
Many refrigeration and HVAC parts are sized by outside diameter. For example, 5 8 copper pipe od is a common size in refrigeration tubing. Residential plumbing, however, often relies on nominal sizes related to internal diameter. Always check the manufacturer’s notes for 5/8 in copper pipe sizing before making a purchase.
As you match fittings to pipe, confirm whether the tubing is described as 5 8 id tube or 5 8 od tubing. Different fitting types, including compression, sweat, flare, and brazed, require their own preparation steps and clearances. Select the fitting method that aligns with the application and pressure level.
Material choice and joint type are determined by system pressure and temperature. For hot potable-water systems, high-temperature-rated soldered or press fittings are recommended. For high-pressure refrigerant lines, flare or brazed joints are often the better choice. Brass adapters work well when transitioning between copper and other metals.
Code requirements at the local level also play a major role. Check local plumbing codes copper fittings requirements before you start any work. Some jurisdictions require brazed joints for HVAC refrigerant systems or restrict mechanical fittings in concealed locations. To satisfy code and warranty standards, look for NSF/ANSI or UPC certifications.
When choosing copper fittings, buy from reputable suppliers such as Ferguson or Grainger and follow the manufacturer’s instructions. When there is any uncertainty, ask a licensed plumber or HVAC technician to confirm the correct fit and rating. This helps prevent expensive rework.
| Attribute | Common Marking | When to Use | Notes |
|---|---|---|---|
| Refrigeration tubing type | 5 8 copper pipe OD | High-pressure refrigerant lines | Fittings are usually sized by OD; use flare or brazed joints |
| Water-supply tubing | 5/8 in copper pipe sizing, nominal | Residential water supply | Check whether the label refers to ID or nominal size |
| Compression fittings | Marked by tube OD or nominal ID | Quick repairs, retrofit work | Good for low-to-moderate pressure; follow torque specs |
| Sweat/soldered fittings | Often listed by nominal size | Hot water, durable joints | Requires proper flux, heat, and cleaning for leak-free joints |
| Flare fittings | 5 8 id tube or 5 8 OD in certain specifications | Fuel lines and refrigeration lines | Do not mix flare and compression unless rated for both |
| Approved certifications | NSF/ANSI, UPC | Potable-water systems | Required by many local plumbing codes copper fittings rules |
A detailed checklist should be followed: confirm sizing, verify certifications, choose fittings for the correct pressure and temperature, and ensure proper installation. That approach will help you choose copper fittings that work well and meet local regulatory requirements.
Installation Tips, Common Errors, And Maintenance For Copper Fittings
Preparation is key to avoiding failures. Adhering to basic installation tips for copper fittings can significantly reduce leaks and rework. The way the system is assembled plays a major role in its long-term performance. This applies whether you are working with standard home supply piping or a 5/8 od copper tube for HVAC lines.
Cutting, deburring, and cleaning pipe ends before assembly
Use a proper tube cutter first to make sure the cut is square. After cutting, it’s essential to remove burrs and copper shavings from the pipe ID and end. Use emery cloth or a wire brush to clean the inside of the fittings and the outside of the pipe end. That step is necessary so flux and solder can flow evenly. Without proper preparation, capillary action is weakened and leaks can result.
Using Flux, Heat, And Solder Properly While Avoiding Cold Joints And Leaks
Before assembling the joint, apply flux evenly to both mating surfaces. Then heat the fitting evenly. When soldering copper pipe, keep the flame moving to ensure uniform heat distribution. Feed solder to the heated seam and let capillary action pull it into the joint. You should avoid both overheating, which burns flux and weakens the joint, and underheating, which leads to cold joints and leaks.
Teflon Tape, Thread Sealants For Threaded Copper Fittings, And Avoiding Overtightening
Male threads on threaded copper fittings should receive Teflon tape or a compatible pipe thread sealant. Wrap the tape clockwise to ensure it stays in place while threading. Do not overtighten, because too much torque can crack fittings or strip threads. For compression fittings, follow the manufacturer’s torque or turn count to avoid crushing ferrules.
Routine Inspection, Leak Prevention, And When To Replace Fittings
Inspect copper fittings regularly for corrosion, pinhole leaks, and mechanical damage. Preventing leaks starts with correct assembly and continues through routine inspections. If leaks persist after tightening, corrosion is visible, or the system is being upgraded to modern standards, the fittings should be replaced.
Frequent mistakes include poor cutting, skipped deburring and cleaning, confusion between OD and ID sizing, overheating while soldering, and ignoring manufacturer pressure limits. Reliable systems depend on following product instructions and keeping spare parts from trusted suppliers such as Mueller Industries or Viega.
Final Thoughts
Copper pipe fittings are valued in plumbing and HVAC because of their durability, heat tolerance, and long service life. The choice between soldered joints, compression fittings, push-to-connect options, flare connections, or brazed assemblies depends on the job’s specifics. Correctly matching the fitting size and type is critical. Be mindful of OD versus ID sizes, like 5/8, to avoid errors.
When selecting copper fittings, ensure they meet pressure ratings, material standards, and local codes. For dependable support and quality products, work with a trusted wholesale distributor such as Installation Parts Supply. They provide compatibility charts and certification details to help guide your selection for any plumbing project.
Effective preparation and installation are key to a lasting system. Begin by cutting, deburring, and cleaning pipe ends. Then follow the recommended procedures for fluxing, heating, or mechanical assembly. Regular inspections and timely replacement of worn fittings are essential for maintaining a leak-free, safe system.
